The Falcon Heatbox.............

.......... offers a breakthrough in D.F.E. Gas Fires. Ordinary fires allow a large proportion of heat to rise unabated up your chimney, but not the 'Falcon Heatbox'! It directs escaping heat back into your room. So you get more heat for the same gas consumption and all without losing on realism.

Falcon Fires are able to achieve this by using the latest in refractive design and insulative materials. So when you combine the 'Falcon Heatbox' with the already high specifications of 'Falcon Fires' the result is convenience with heat that you can warm to.

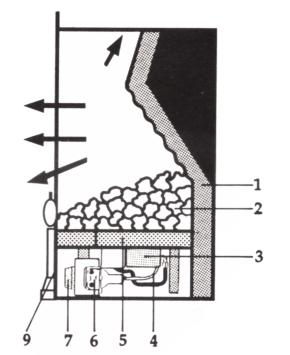

WHAT MAKES THE FALCON HEATBOX SO GOOD?
1. Innovative concept and design in insulative materials.
2. Coals - only the highest quality small and large coals are used giving unsurpassed effect.
3. Unique Venturi and mixing area to give thorough safe and complete combustion quietly.
4. Gas Injectors - superbly engineered multi-holed, low noise ceramic injectors.
5. Twinport arrangement - to give even flame distribution.
6. Gas control - giving easy to operate control over the flame picture.
7. Autolight - no matches, no mess, just 100% reliable lighting.
8. Finish - quality built steel fabrication with fireproof finish.
9. Mild steel flat surround finished in black heat resistant paint or if you prefer brass.
10. Four different standard sizes to allow flush fitting in all fireplaces.
11. Easy access for servicing.
12. Unsurpassed Efficiency.

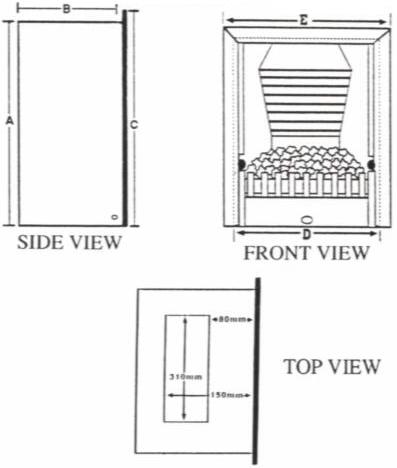

DIMENSIONS
* All dimensions are approximate.
  Model 16"A 16"B 18" 18"B 22"
A 545mm 545mm 545mm 545mm 595mm
B 200mm 200mm 200mm 200mm 250mm
C 585mm 585mm 585mm 585mm 625mm
D 400mm 400mm 450mm 450mm 550mm
E 480mm 480mm 530mm 530mm 610mm


TECHNICAL DATA
Standard Specification:
8mm OD. inlet pipe.
Inlet pressure test point.
Injector pressure test point.
Oxy pilot system.
Remote control option.
Safety thermocouple.
Autolight device.
 INJECTORS
Natural Gas: Multi-hole pattern, Bray 600
LPG: Multi-hole pattern, Bray 300

Operating Gas Pressures:
Natural Gas: 8" Wg, 20 mbar.
LPG: 14" Wg, 37 mbar. 		GAS INPUTS:
Natural Gas: Max. 7kw   Min. 3kw
LPG: Max. 7kw   Min. 3kw 		Installation Requirements
A clean well constructed Class 1 Flue of not less than 7 inches ID. Permanent Ventilation where necessary. Gas supply at appropriate pressures. Non-combustible Base & Hearth. The Falcon Heatbox is a complete product. Each fire is complete with instruction and Ceramic heat reflector casing. Installation only by competent persons and in accordance with all relevant building and gas regulation.
Click Here for our Gas Heatbox Fires catalogue
